NCC Rainbow Needle Electrodes
The product is used in conjunction with suitable monitoring equipment for the acquisition and conduction of electrical signals from relevant subcutaneous areas of the human body
Appurtenance:
Description
NCC Rainbow Recording Electrodes：Straight Needle Electrodes
 |
 |
 |
 |
 |
 |
 |
 |
| Product Series | Model | Features | Needle | Wire | Package | ||||
| Material | Length | Diameter | Material | Length | Color | ||||
|
Straigt needle electrodes |

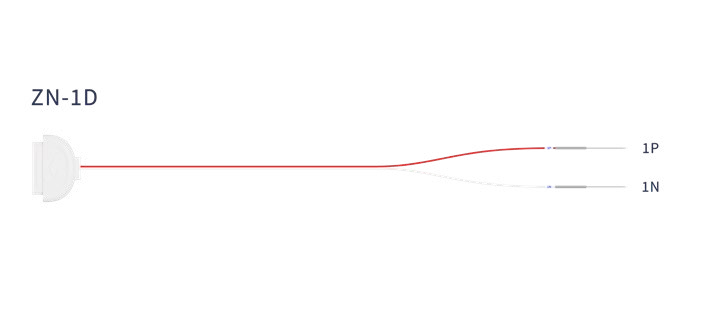

ZN-1D | 1CH-bipolar | Stainless steel | 13mm | 0.4mm | TPU | 1500mm (standard), customizable 1500–2500mm | 6 colors | 60 pcs/carton |

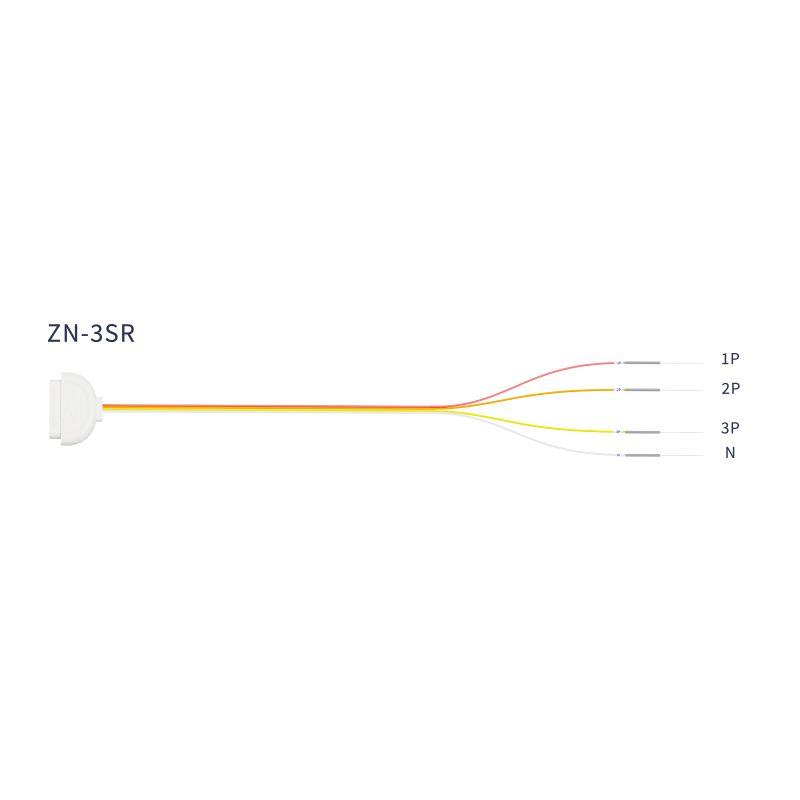

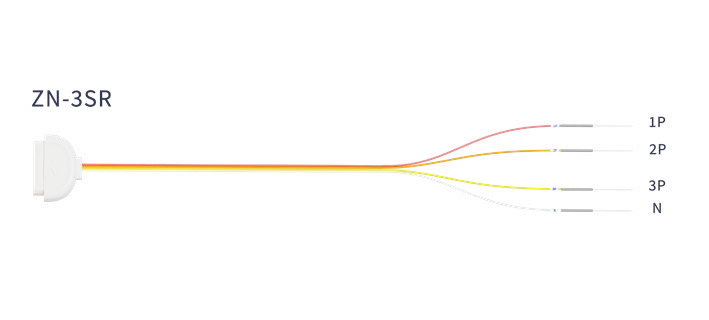

| ZN-3SR | 3CH-SharedREF | ||||||||

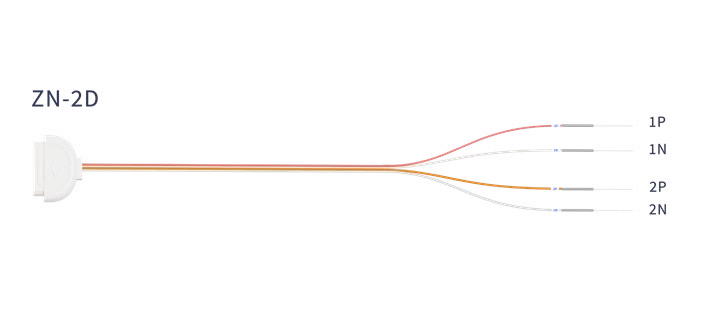

| ZN-2D | 2CH-Bipolar | ||||||||

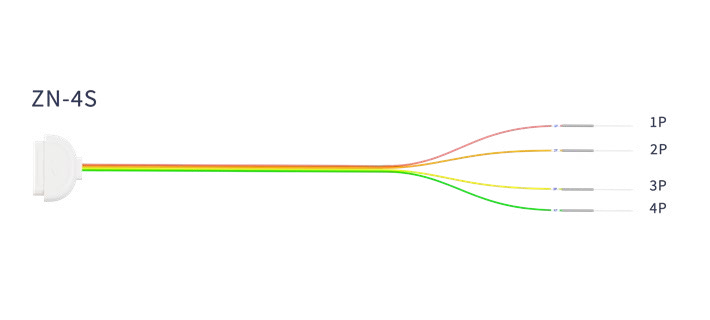

| ZN-4S | 4CH-Monopolar | ||||||||

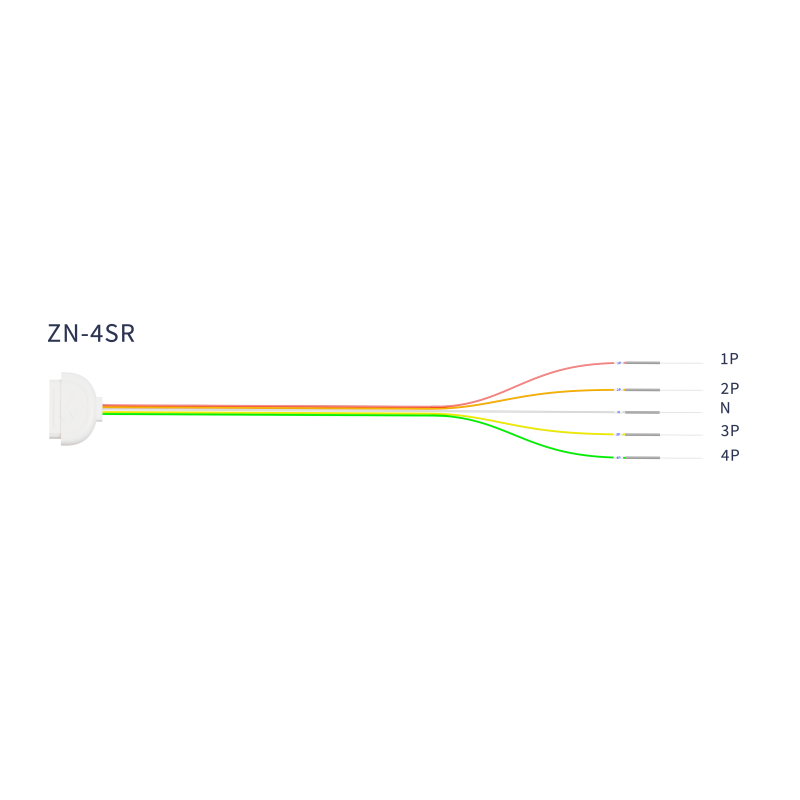

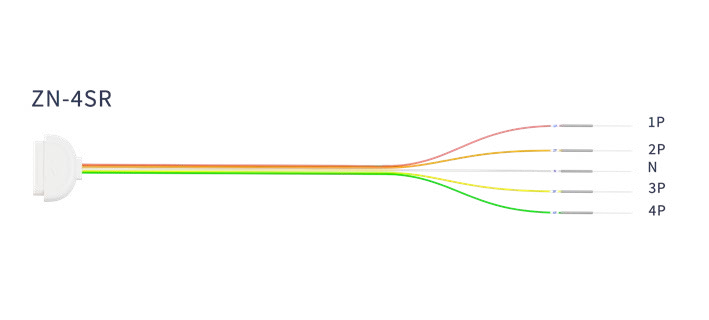

| ZN-4SR | 4CH-SharedREF | ||||||||

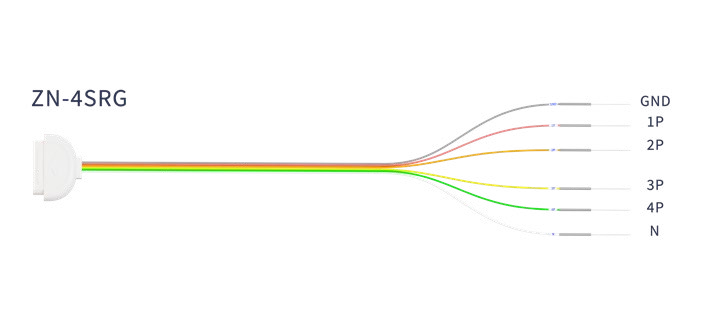

| ZN-4SRG | 4CH-SharedREF-GND | ||||||||

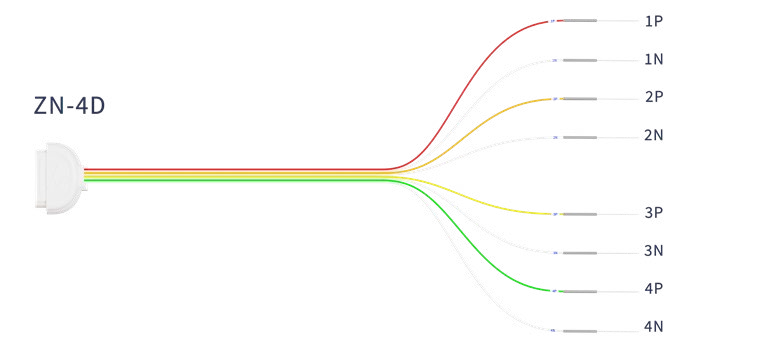

| ZN-4D | 4CH-Bipolar | ||||||||

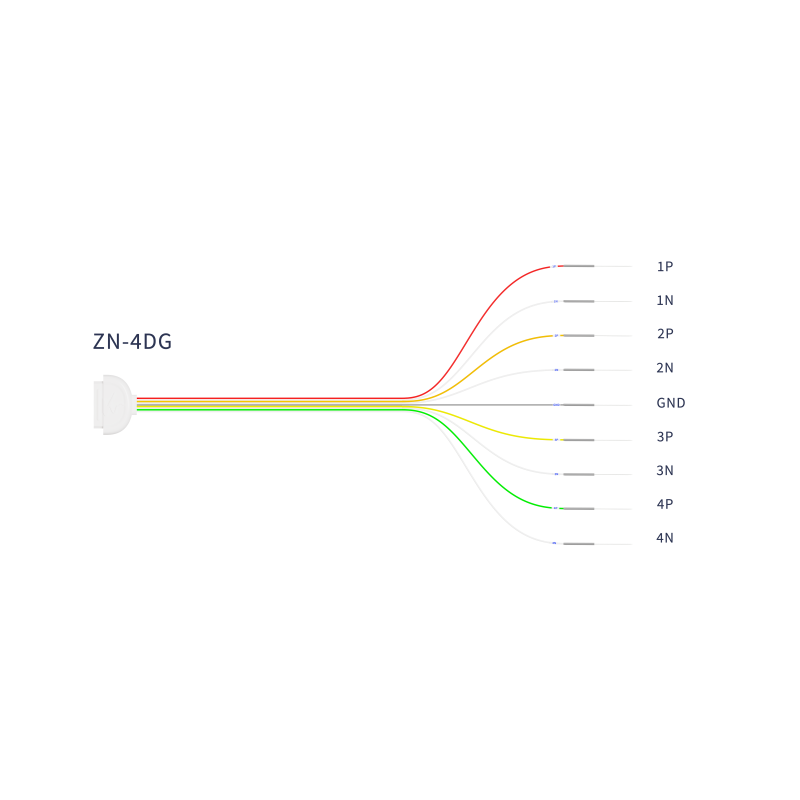

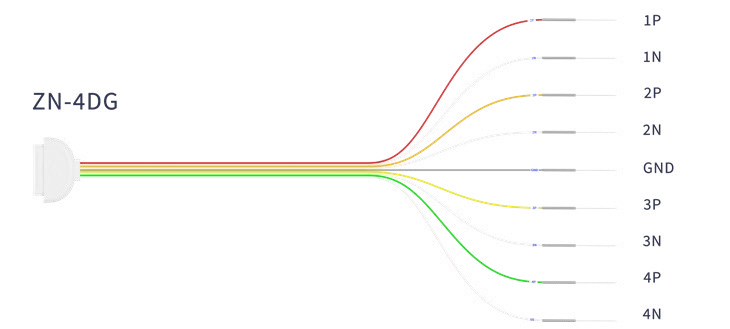

| ZN-4DG | 4CH-Bipolar-GND | ||||||||
Curved Needle Electrodes
NCC Rainbow Recording Electrodes: Curved Needle Electrodes
 |
 |
 |
 |
 |
 |
 |
| Product Series | Model | Features | Needle | Wire | Package | ||||
| Material | Length | Diameter | Wire Material | Wire Length | Wire Color | ||||

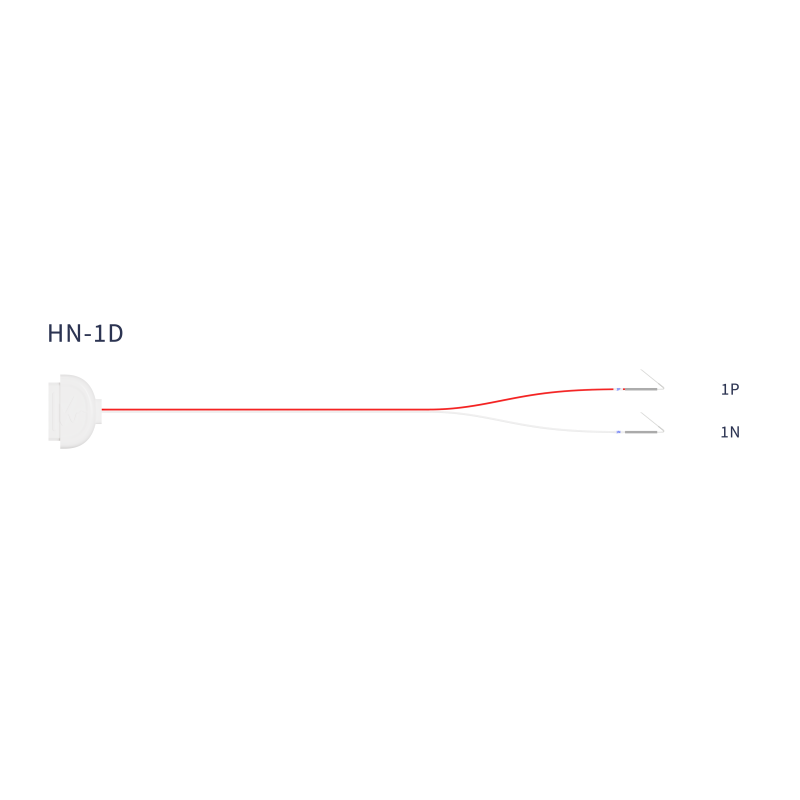

| curved needle electrodes | HN-1D | 1 CH-Bipolar | Stainless steel | 13mm | 0.4mm | TPU | 1500mm (standard), customizable 1500–2500mm | 6 colors | 60 pcs/carton |

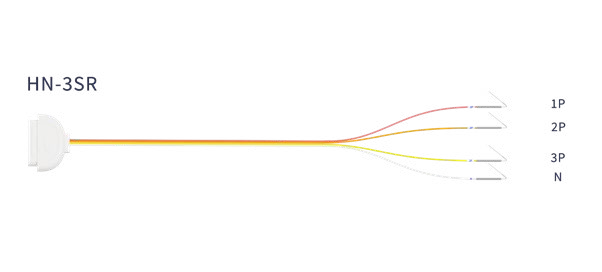

| HN-3SR | 3CH -Shared REF | ||||||||

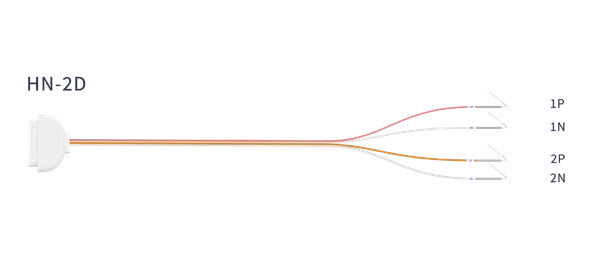

| HN-2D | 2 CH-Bipolar | ||||||||

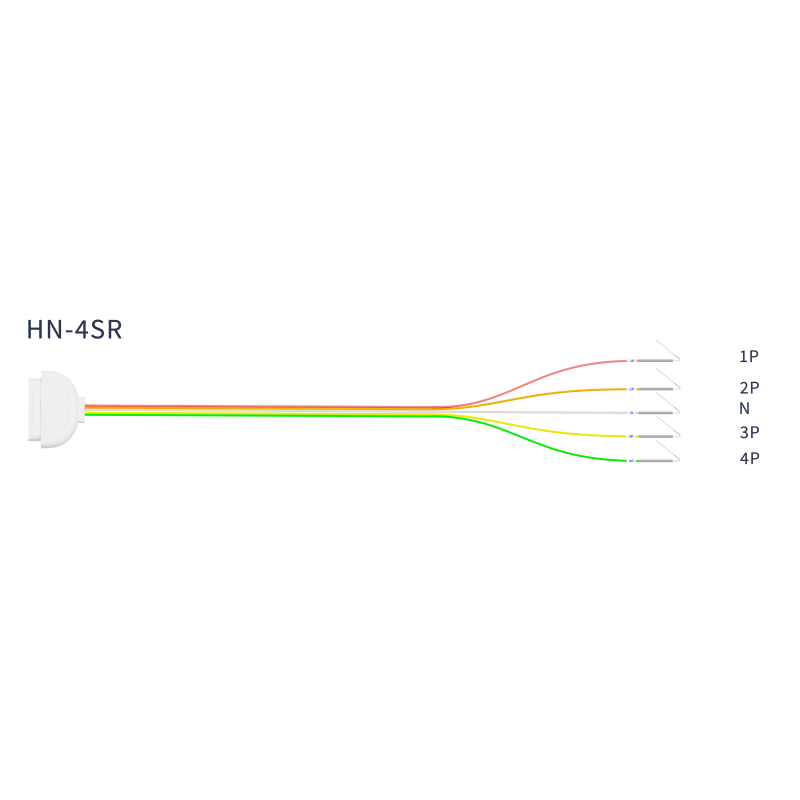

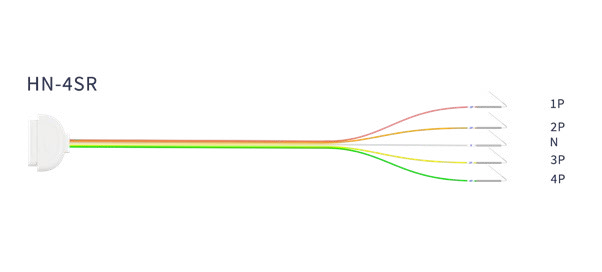

| HN-4SR | 4CH -Shared REF | ||||||||

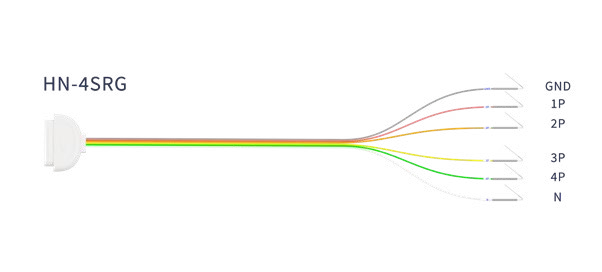

| HN-4SRG | 4CH -Shared REF-GND | ||||||||

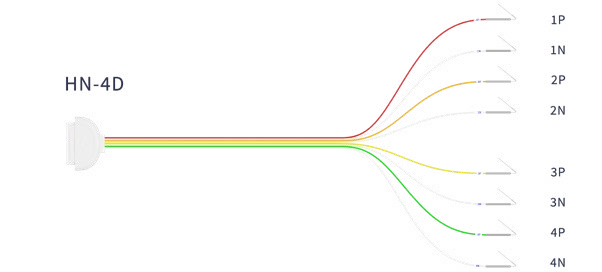

| HN-4D | 4 CH-Bipolar | ||||||||

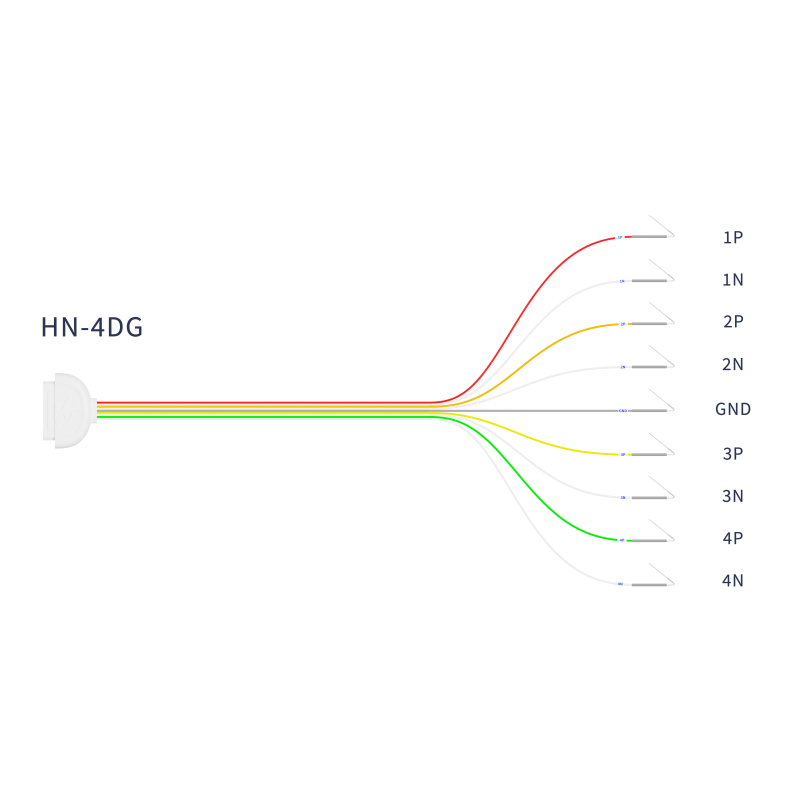

| HN-4DG | 4 CH-Bipolar-GND | ||||||||
NCC Rainbow Electrodes for Stimulation
4 Types of Electrodes For Stimulation
| Product Series | Model | Features | Needle | Wire | Package | ||||
| Material | Length | Diameter | Material | Length | Color | ||||
|
Stimulation electrodes |
SWF-1D |
single-channel, bipolar, spiral |
Stainless steel | 30mm | 0.6mm | TPU |
1500– 2500mm |
2colors |
20 pcs /box 4 box /1 carton |
| ZNF-1D |
single-channel, bipolar, straight pins |
13mm | 0.4mm | ||||||
| HNF-1D |
single-channel, bipolar, bent pins |
||||||||
Subdermal Needle & Corkscrew Electrodes Series
Advantages:
*Customized colors and threads
*Upgraded materials
*Increased immunity to interference
*Tidier convenience for usage
| Product Series | Model | Features | Needle | Wire | Package | ||||
| Material | Length | Diameter | Material | Length | Color | ||||
|
Subdermal needle electrodes |
SNET9 |
Single-core, straight pin, 9-row parallel line type |
Stainless steel | 13mm | 0.4mm | TPU |
2000mm (standard), customizable 1500– 2500mm |
6/12 colors |
60 pcs/carton |
| SNET2 |
Straight pin, parallel line type - TPU + 2-row parallel lines |
TPU | |||||||
| SNET1 |
Straight pin, monopolar type - TPU + single core |
TPU | |||||||
| CSEP1 |
Spiral monopolar type series, PVC + single wire |
PVC | |||||||
| CSEP2 |
Spiral twisted pair type, PVC + twisted pair cable |
PVC | |||||||
| CSEP2-2 |
Spiral twisted pair series - 2 pairs of CSEP2, PVC + twisted pair in one package |
PVC | |||||||
| SNEP2 |
Straight pin, twisted pair type - PVC + twisted pair |
PVC | |||||||
| SNEP1 |
1 Straight pin, monopolar type - PVC + single core |
PVC | |||||||
