Clinical Solutions: Orthopaedic Surgery

IONM for Orthopaedic Surgery: Protecting Neural Pathways While Achieving Surgical Goals

I.Context & Challenges

Orthopaedic procedures, particularly those involving the spine, entail inherent risks of neurological injury. Mechanical manipulation, instrumentation, and correction of deformities can directly or indirectly compromise the spinal cord, nerve roots, or peripheral nerves. While fluoroscopy and navigation ensure structural accuracy, they provide no information about the functional status of neural pathways in real-time. Post-operative deficits such as paralysis, weakness, or numbness can be devastating.
The NCC Cynapse IONM system is designed to mitigate these risks by establishing:
Intraoperative Neurophysiological Monitoring (IONM) as the "Fifth Vital Sign" in High-Risk Orthopaedic Surgery.
This integration provides a continuous, objective assessment of neural functional integrity, enabling surgeons to intervene before potential injuries become permanent.

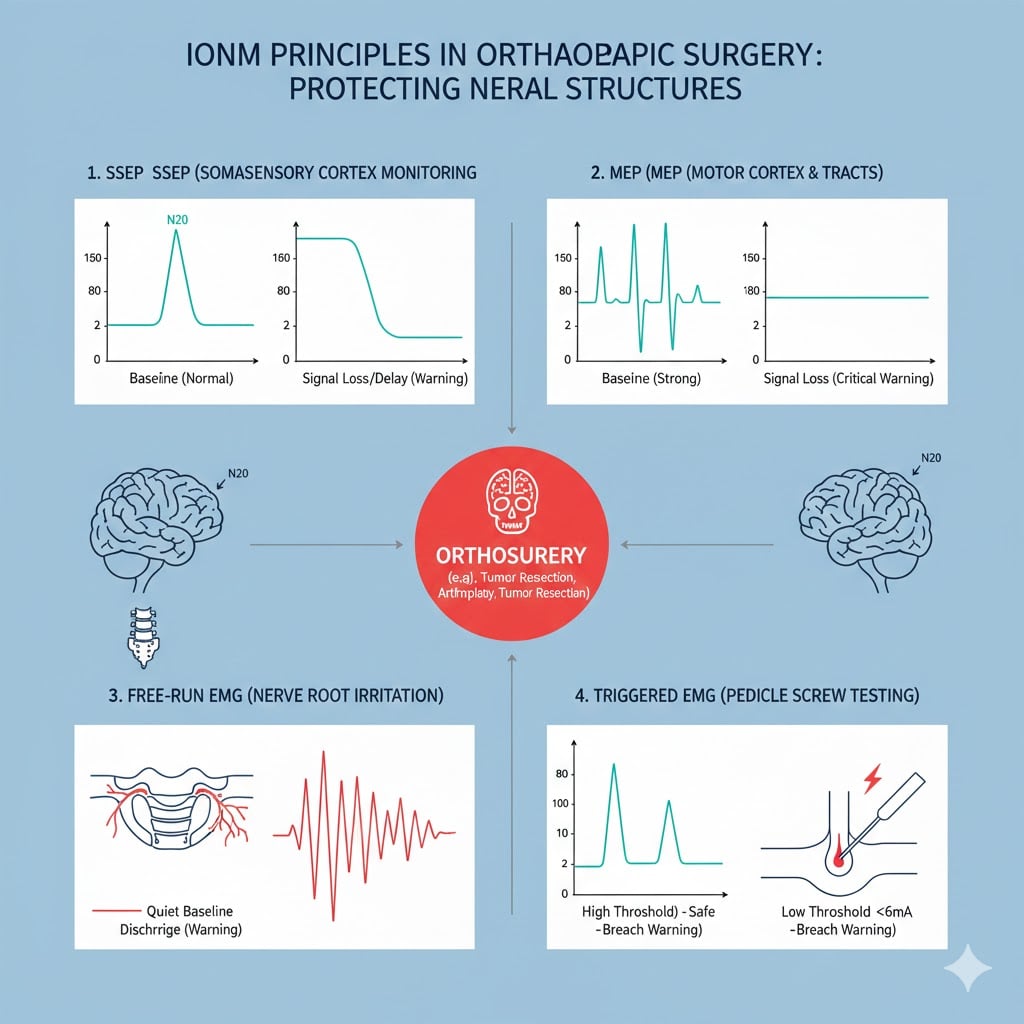

II. The Three-Tiered Safety Model in Orthopaedic Surgery

A comprehensive safety approach in modern orthopaedic surgery combines three essential monitoring layers:

Monitoring Tier	Key Modalities	Function & Clinical Significance
Structural	Fluoroscopy, O-arm, Navigation	Provides real-time visualization of anatomy, implants, and instruments (The Mechanical Guide).
Functional	IONM (MEP, SSEP, EMG, DNEP)	Monitors the integrity of motor and sensory pathways, serving as an early warning system for neural compromise (The Neural Sentinel).
Physiologic	BP, HR, RR, SpO₂	Maintains systemic perfusion, crucial for spinal cord blood flow (The Physiological Base).

Summary of Monitoring Evolution:

Monitoring Type	Focus	Status Upgrade
Basic Physiology	Systemic Life Support	Four Vital Signs
Neural Function	Pathway Integrity & Safety	Fifth Vital Sign

III. Key Applications and Critical Significance

IONM Strategies in High-Risk Orthopaedic Procedures
The NCC Cynapse IONM system, with its non-shadow electrodes, is critical for preventing neurological deficits in a variety of complex procedures:

No.	Procedure / Area	The Critical IONM Value	Definitive Clinical Benefit
01	Spinal Deformity Correction (Scoliosis)	Continuous MEP/SSEP monitoring detects stretch or compression on the spinal cord during rod placement and correction.	Dramatically reduces the risk of postoperative paralysis.
02	Spinal Fusion & Instrumentation	Monitors for nerve root irritation (via EMG) during pedicle screw placement and spinal cord function during decompression.	Prevents radiculopathy and spinal cord injury, improving screw accuracy.
03	Spinal Cord & Cauda Equina Tumor Resection	Real-time feedback on spinal cord and nerve root function during delicate dissection.	Enables maximal safe tumor resection while preserving motor/sensory function.
04	Cervical Spine Surgery (ACDF, Laminoplasty)	Tracks MEP/SSEP changes that may indicate cord compression or ischemia.	Prevents devastating cervical myelopathy complications.
05	Major Pelvic & Limb Surgery	Monitors peripheral nerve and plexus integrity during lengthy reconstructions or tumor resections.	Protects against peripheral nerve palsies and functional loss.
06	Intramedullary Rodding	Detects potential nerve compromise during canal entry or reaming.	Safeguards function in long bone procedures.

IV. Outcomes & Technical Superiority

The Definitive Benefits of NCC Cynapse IONM in Orthopaedics
Our IONM system provides "Functional Guidance," transforming surgical safety and patient outcomes:
Proven Risk Reduction: Real-time alerts provide the surgical team with a critical window to reverse maneuvers causing neural compromise (e.g., reducing correction, adjusting implants).
Enhanced Surgical Confidence: Functional feedback allows for more aggressive corrections and safer instrumentation near neural elements.

Superior Patient Outcomes: Maximizes the preservation of neurological function, leading to faster recovery, reduced rehabilitation needs, and improved long-term quality of life.
Technical Advantage: Non-Shadow Electrodes are essential in the orthopaedic OR, providing artifact-free IONM signals without obscuring crucial fluoroscopic or 3D navigation images of screws and anatomy.

Discover how [NCC Cynapse IONM & Non-shadow electrodes] can transform the safety protocols and outcomes in your Orthopaedic Surgery Suite.
