Clinical Solutions: Spine Surgery

IONM for Spine Surgery: Enhancing Neural Safety During Surgery

Safeguarding the Spinal Cord in Real-Time


I. Context & Challenges

Spine surgery involves direct manipulation of the spinal column, often in close proximity to the delicate spinal cord and nerve roots. The primary surgical challenge is to achieve mechanical goals—such as decompression, stabilization, or deformity correction—without causing iatrogenic neurological injury. Stretch, compression, ischemia, or vascular injury during surgery can lead to irreversible deficits, including paralysis, loss of sensation, or bowel/bladder dysfunction.
While intraoperative imaging confirms structural placement, it is blind to functional integrity.
The NCC Cynapse IONM system closes this critical gap by establishing:
Intraoperative Neurophysiological Monitoring (IONM) as the "Fifth Vital Sign" in Spine Surgery.
It provides an indispensable, real-time functional assessment, allowing surgeons to make informed decisions at the moment of risk.


II. The Three-Tiered Safety Model in Spine Surgery

Comprehensive patient safety in the modern spine surgery suite is built upon three integrated pillars of monitoring:

Monitoring Tier	Key Modalities	Function & Clinical Significance
Structural	Fluoroscopy, O-arm, Navigation	Provides real-time anatomical and instrument visualization (The Surgeon's Eyes).

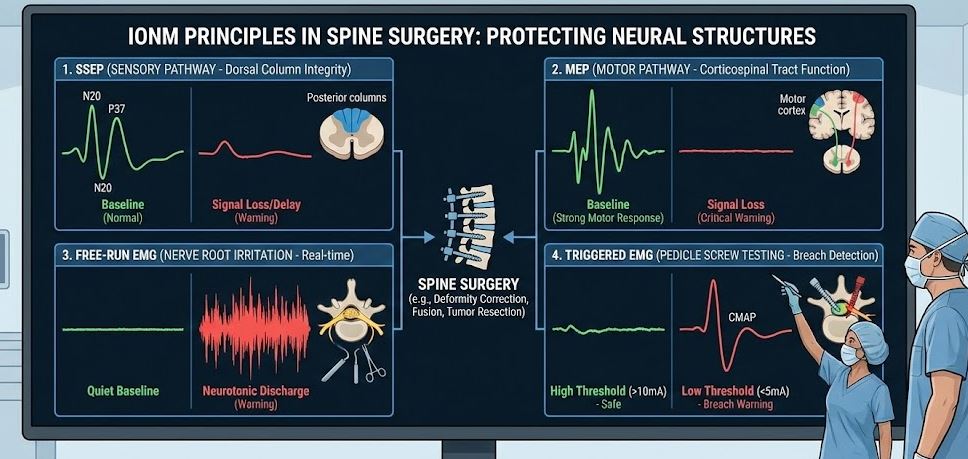

Functional	IONM (MEP, SSEP, EMG, DNEP)	Continuously monitors the functional integrity of spinal cord tracts and nerve roots (The Patient's Neural Voice).
Physiologic	BP, HR, RR, SpO₂	Maintains systemic perfusion, crucial for spinal cord oxygenation (The Life Support Foundation).

Summary of Monitoring Evolution:

Monitoring Type	Focus	Status Upgrade
Basic Physiology	Systemic Life Support	Four Vital Signs
Neural Function	Spinal Cord & Nerve Root Safety	Fifth Vital Sign

III. Key Applications and Critical Significance

IONM Strategies Across the Spectrum of Spine Procedures
The NCC Cynapse IONM system, with its advanced protocols and non-shadow electrodes, is critical for preventing neurological deficits across all major spine surgery domains:

No.	Procedure / Area	The Critical IONM Value	Definitive Clinical Benefit
01	Spinal Deformity Correction (Scoliosis, Kyphosis)	MEP/SSEP provide immediate feedback on spinal cord function during rod bending, correction, and osteotomy.	Enables aggressive correction within safe limits, preventing paraplegia.
02	Intradural & Extradural Spinal Tumor Resection	Continuous MEP/SSEP monitor the cord, while EMG protects specific nerve roots during dissection.	Maximizes tumor resection while preserving motor and sensory function.
03	Cervical Spine Surgery (ACDF, Laminoplasty, Corpectomy)	MEP/SSEP detect compromise from cord compression or stretch. EMG monitors nerve roots during decompression.	Prevents devastating upper and lower extremity deficits.
04	Pedicle Screw Placement & Thoracolumbar Fusion	Triggered EMG (tEMG) assesses pedicle wall integrity for screw accuracy, preventing nerve root injury.	Increases the accuracy and safety of instrumentation.
05	Spinal Cord Decompression (Stenosis, Herniation)	SSEP/MEP confirm improved neural conduction post-decompression and monitor for iatrogenic injury.	Objectively confirms adequate decompression and functional improvement.
06	Vascular Spinal Procedures (e.g., AVM, Fistula)	MEP/SSEP detect ischemic changes during vessel clipping or embolization.	Protects the spinal cord from infarct during vascular manipulation.

IV. Outcomes & Technical Superiority

The Definitive Benefits of NCC Cynapse IONM in Spine Surgery
Our IONM system acts as a "Functional Guidance" for the spine surgeon, delivering critical insights that are fundamental to modern spinal care:

Preventative Safety: Real-time alerts provide the surgical team with a crucial window to reverse maneuvers—such as reducing correction or adjusting an implant—before spinal cord or nerve root injury becomes permanent.
Surgical Precision & Confidence: Functional feedback guides the extent of decompression, the safety of correction, and the accuracy of instrumentation, enabling more definitive surgery with reduced risk.

Optimized Patient Outcomes: Maximum preservation of neurological function translates directly to faster recovery, reduced long-term disability, and improved quality of life.
Technical Superiority: Non-Shadow Electrodes are engineered for the spine surgery environment, ensuring high-fidelity IONM signals without creating artifacts that obscure critical fluoroscopic or 3D navigation images of screws and anatomy.

Discover how [NCC Cynapse IONM & Non-shadow electrodes] can transform the safety protocols and outcomes in your Spine Surgery Suite.
